Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size

Certification:

GS, CE, ISO 9001

Request A Quote

Product Details

Model NO.:

M6.5-150121-D2K

Lifting Height:

1210mm

Lifting Time:

100s

Transport Package:

Wooden Pallet And Steel Pallet, Wooden Case

Specification:

2700x2200mm

Trademark:

Marco

Origin:

China

HS Code:

84289090

Supply Ability:

1000

Warranty:

12 Months

Lift Mechanism:

Scissor Lift

Carrying Capacity:

15000kg

Moves:

Stationary

Driven Type:

Hydraulic

Running Mode:

Stationary

Customization:

Available | Customized Request

Payment & Shipping Terms

Customization M3-025130-D2K Loading Dock Table with Handrail and Loading Flap

Get Best Price

Video

M6.5-100270-D22HK 10 Ton Heavy Duty Hydraulic Scissor Lift Table for Loading Dock

Get Best Price

+8618812345112

Uooped@maoyt.com

86-010-2328233-12

Contact Now

Product Description

Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor.
Different from other type of lift table, Loading dock table has standard factors as below:
Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame, two paint process with thickness 120um.

Model No.	M6.5-150121-D2K	Capacity	15000kg
Platform size	2700x2200mm	Base Frame	2700x2170mm
Min. Height	250mm	Lifting Height	1210mm
Model Type	stationary	Lift Time	100s
Color	Grey/green/ blue/others	Product name	refer to product
Specifications	Customizable	Application	material handling
Power Voltage	380V 50Hz	Control Voltage	24V DC
Delivery Time	1 month	Package	exported case
Trademark	Marco	HS Code	84289090
Orgin	Made In China	Production Capacity	100/month
Certificate	ISO9001, CE, ISO3834,	Design standard	EN1570-1-2011

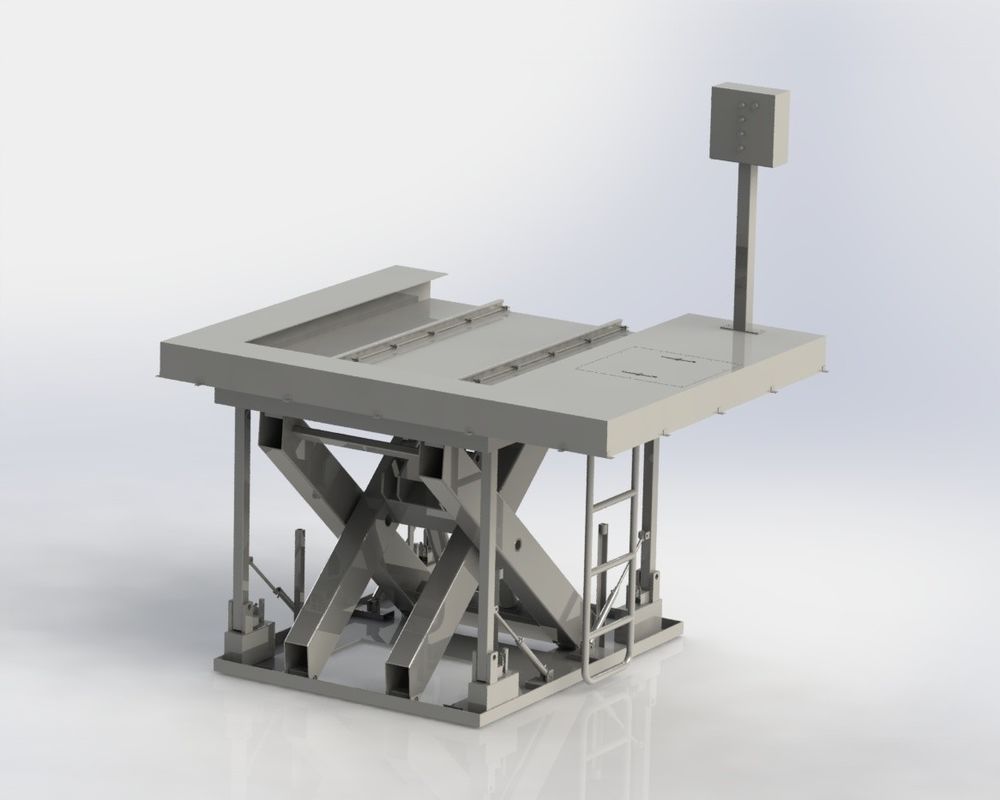

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 3

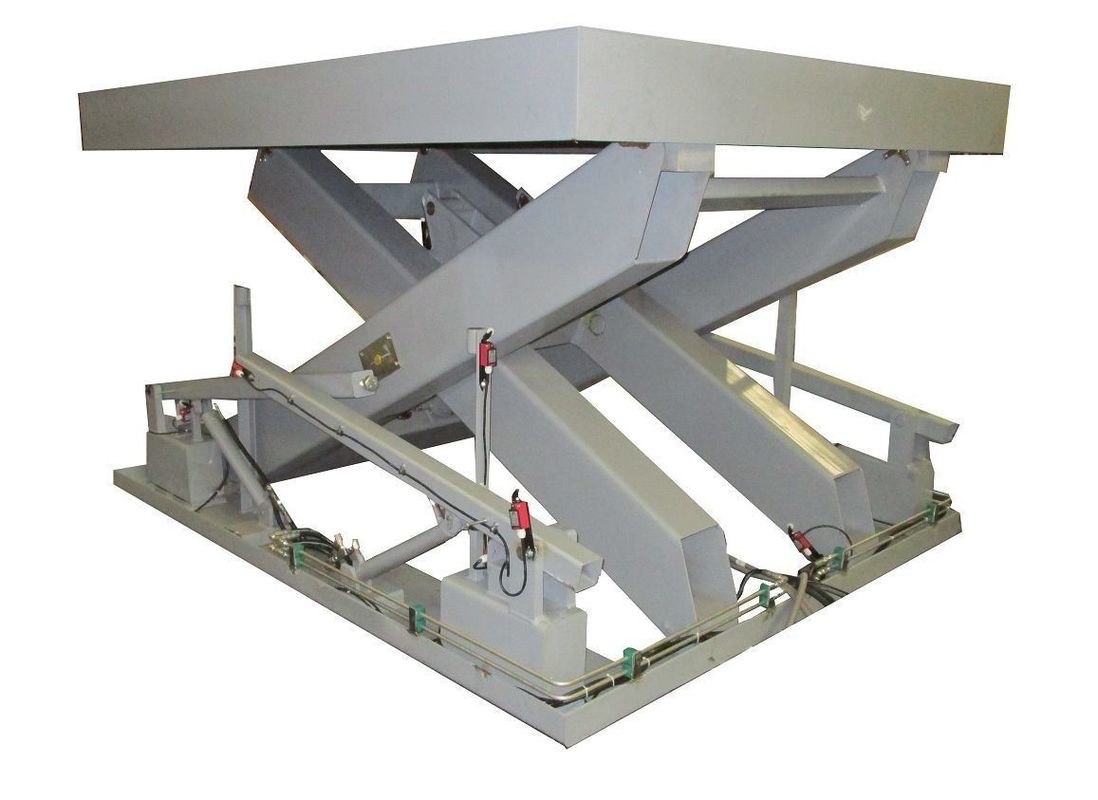

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 4

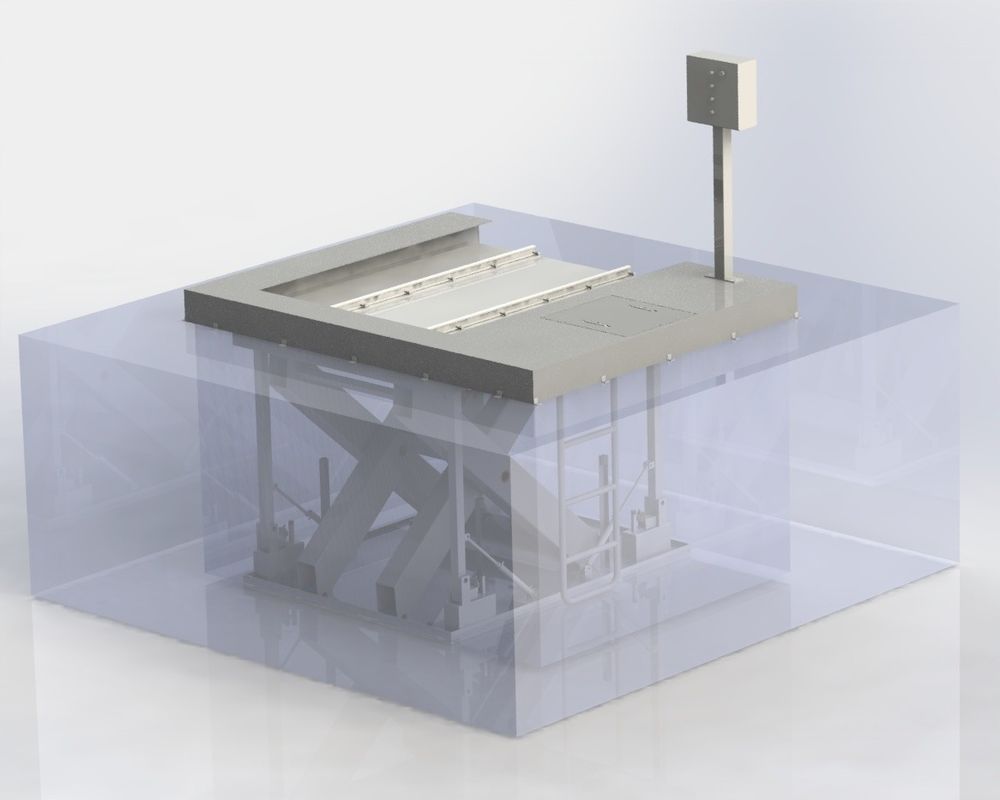

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 5

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 6

Hydraulic Leg Loading Dock Table with 15000kg Carrying Capacity and 2700x2200mm Size 7
